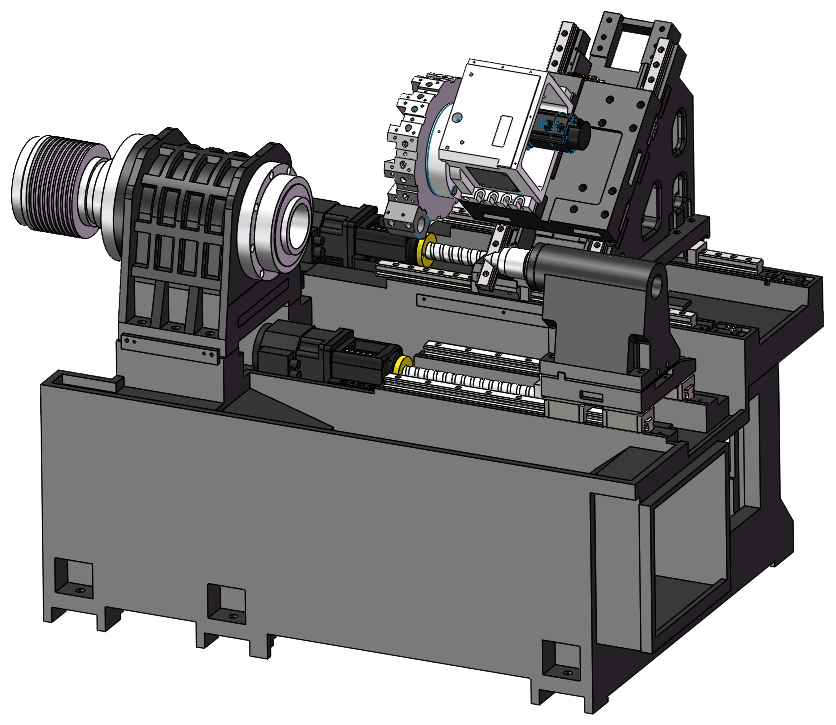

The HTL series is a large-scale CNC turning center, specially designed for large and long shaft products. It features an ultra-wide integral bed, a 45° inclined saddle, and large-sized roller linear guides and￠50mm precision-grade ball screw. This provides sufficient machine rigidity, enabling it to handle various machining tasks and maintain bed accuracy for a long time. By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life. |
 |
■ Specifications
| Machine Type | HTL110ZY-1050 | HTL110ZY-1250 | HTL110ZY-1550 | HTL110ZY-1850 | HTL110ZY-2050 |
| 最大回转直径 Max. swing diameter | 830mm | 830mm | 830mm | 830mm | 830mm |
| 最大加工直径 Max. machining diameter | 580mm | 580mm | 580mm | 580mm | 580mm |
| 最大加工长度 Max. machining Length | 1050mm | 1250mm | 1550mm | 1850mm | 2050mm |
| 主轴端部形式 Spindle nose | A2-11 | A2-11 | A2-11 | A2-11 | A2-11 |
| 主轴电机功率 Spindle motor power | 15/18.5 KW | 15/18.5 KW | 15/18.5 KW | 15/18.5 KW | 15/18.5 KW |
| 主轴孔直径 Spindle bore | 127mm | 127mm | 127mm | 127mm | 127mm |
| 主轴最高转速 Max. spindle speed | 6000r/min | 6000r/min | 6000r/min | 6000r/min | 6000r/min |
| ZY轴行程 Interpolation of ZY-axis travel | ±100mm | ±100mm | ±100mm | ±100mm | ±100mm |
| X轴行程 X axis | 360mm | 360mm | 360mm | 360mm | 360mm |
| Z轴行程 Z axis | 1230mm | 1430mm | 1730mm | 2030mm | 2230mm |
| X轴快速进给速度 X axis rapid feed speed | 30m/min | 30m/min | 30m/min | 30m/min | 30m/min |
| Z轴快速进给速度 Z axis rapid feed speed | 30m/min | 30m/min | 30m/min | 30m/min | 30m/min |
| X轴电机最大转矩 X axis Max. torque of motor | 45N.m | 45N.m | 45N.m | 45N.m | 45N.m |
| Z轴电机最大转矩 Z axis Max. torque of motor | 69N.m | 69N.m | 69N.m | 69N.m | 69N.m |
| Y轴电机最大转矩 Y axis Max. torque of motor | 45N.m | 45N.m | 45N.m | 45N.m | 45N.m |
| 液压夹紧 Hydraulic clamping 卡盘尺寸 Chuck Size |
10/12” | 10/12” | 10/12” | 10/12” | 10/12” |
| 伺服刀塔 Servo Tool Turret | 12/16 工位 | 12/16 工位 | 12/16 工位 | 12/16 工位 | 12/16 工位 |
| 刀方规格 OD tool size | 25x25mm | 25x25mm | 25x25mm | 25x25mm | 25x25mm |
| 镗孔刀直径 Boring tool diameter | ￠50 mm | ￠50 mm | ￠50 mm | ￠50 mm | ￠50 mm |
| 尾座行程 Tailstock travel | MT-6# 500mm |
MT-6# 600mm |
MT-6# 600mm |
MT-6# 600mm |
MT-6# 600mm |
| Machine size (L x W x H) | 3350x1470x1850mm | 3600x1470x1850mm | 3850x1470x1850mm | 4150x1470x1850mm | 4500x1470x1850mm |
| Standard weight | 7500KG | 7900KG | 8500KG | 9000KG | 9500KG |
■ Expandable functions of machine tools
|
Side-mounted Y-axis or Bridge-type Y-axis |
 |
| Large-scale Servo Tool Turret HTL series is equipped with a large servo tool turret for powerful cutting. |
 |
| Full protection sheet metal The fully enclosed stainless steel inner protective sheet metal is rationally laid out and looks high-end and elegant. |
 |
| Main shaft type Programmable Tailstock HTL series are features spindle-type hydraulic programmable tailstock with high load capacity, precise positioning, excellent stability, and convenient operation, ideal for machining large workpieces. |
 |
| High-precision self-centering hydraulic center rest Configurable high-precision self-centering hydraulic center rest, improving the stability of long shaft processing. |
 |
